Truck Bed Camper Blueprints & DXF Cut Files COMBO

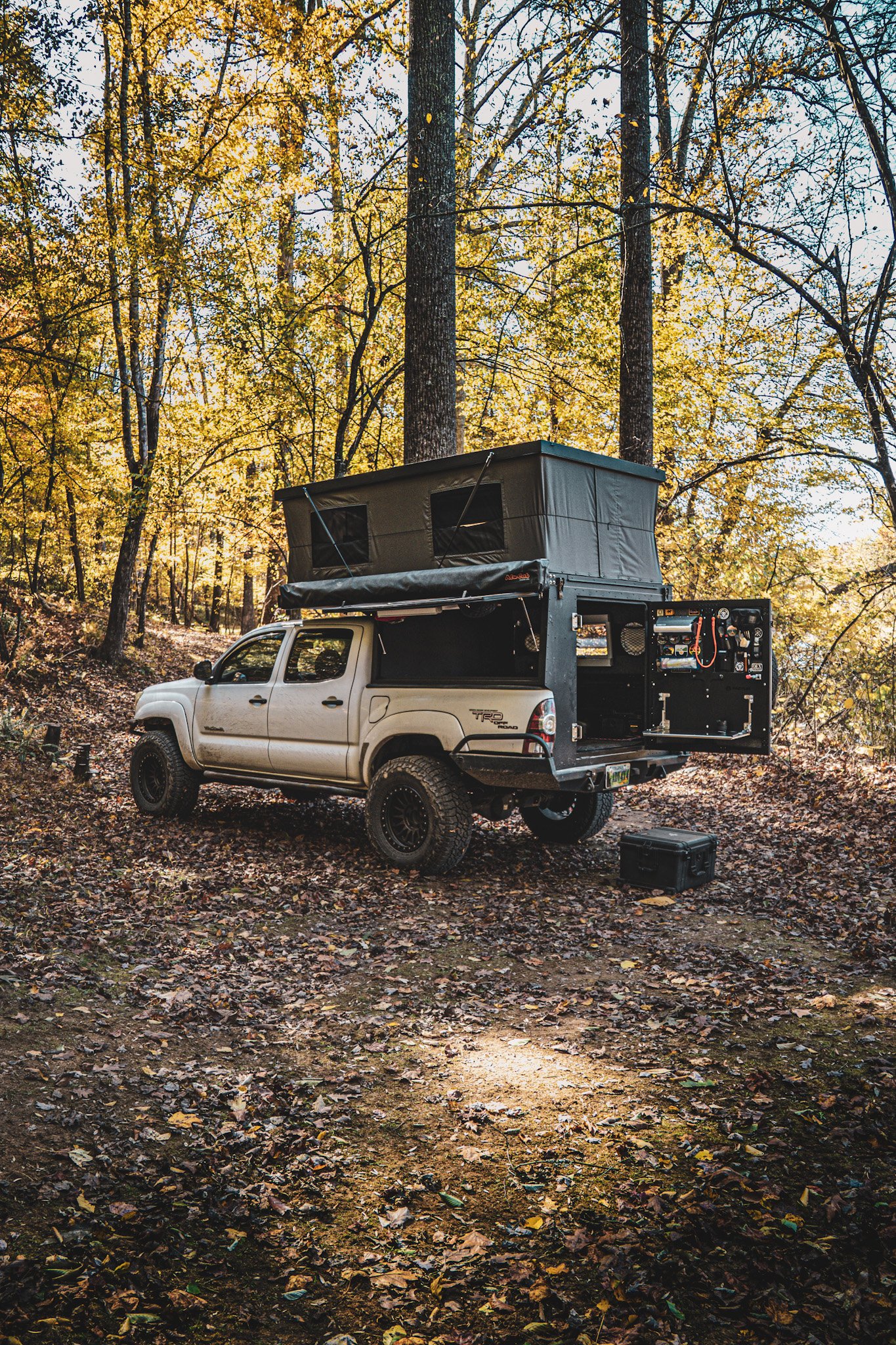

These are the blueprints for my truck bed camper build on my tacoma

+PLUS 13 DXF Files for all the little brackets I designed and had cut & bent by Sendcutsend.com

These also include the bracket/plate files for the interior bench build you do not need to purchase those separately.

The DXF Files come with PDF instructions on which one goes where, and what material sizes to use etc.

You will be able to upload the DXF File to Sendcutsend.com and have them laser cut & bend the pieces for you!

The camper blueprints are 13 pages long and includes all the measurements & material sizes I used for the build itself.

I have included a few of the pages in the product photos with the details scribbled out to give you an idea of what they will be like.

To accompany these blueprints, I have an entire Youtube build series that will show you how it's done every step of the way! (Including the Fabric)

You can watch that HERE

This was my very first aluminum welding project, so please do not be intimidated!

You can do anything you put your mind too.

Best of luck on your build!!

Please note this was made for a 05-15 tacoma some dimensions may vary depending on which truck you are building on.

Either way, this is a great guide to help you plan for your particular build when it comes to material sizes!

The door latch files will not be included as it was a “copy” design of the alucab canopy campers and I do not feel it’s right to sell their “idea”
